Archetype First Time Builder Bundle



If you're looking for a pre-built drone, CLICK HERE



If you're looking for the frame only, CLICK HERE



Everything you need to build your first FPV drone — no guesswork, no missing tools.

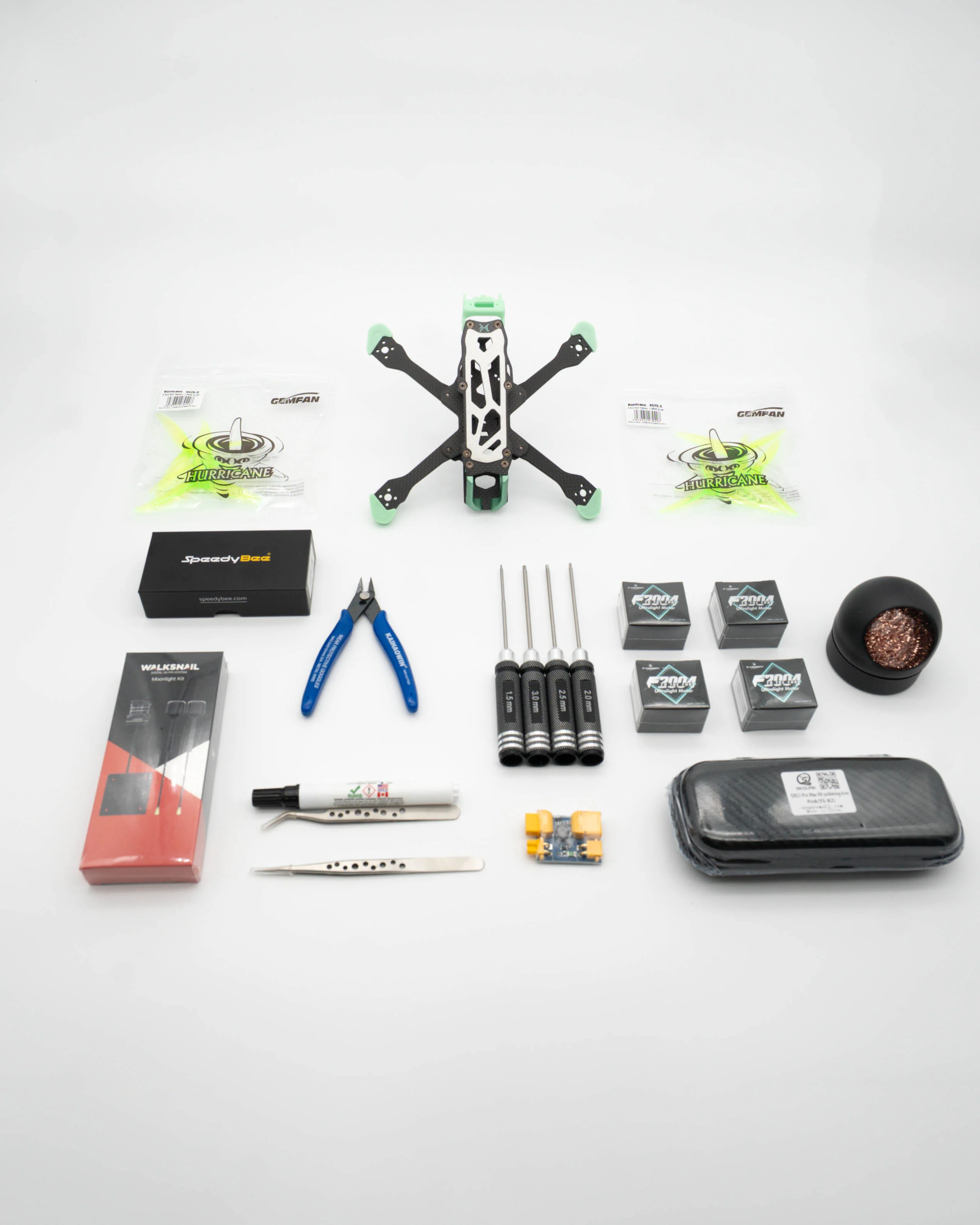

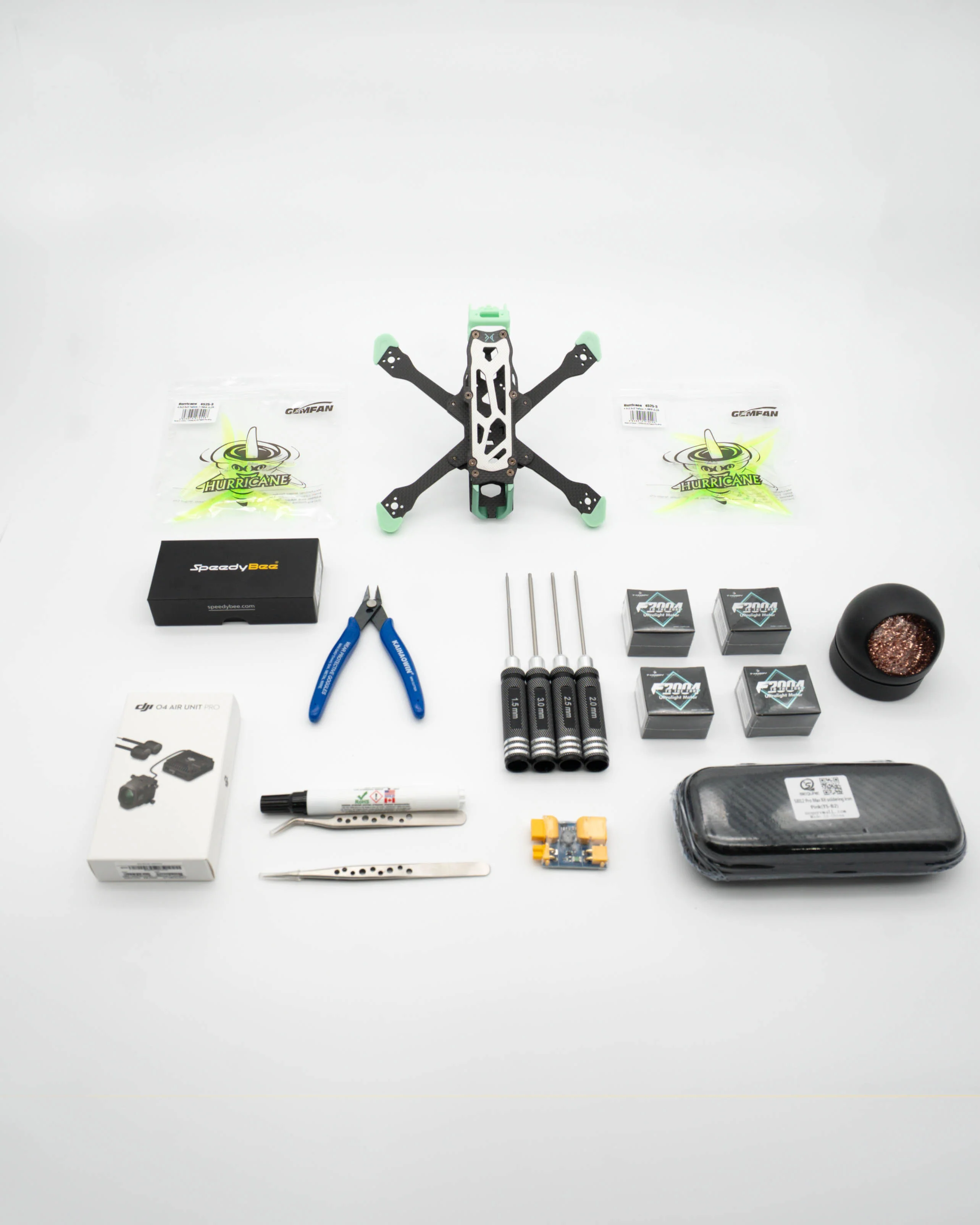

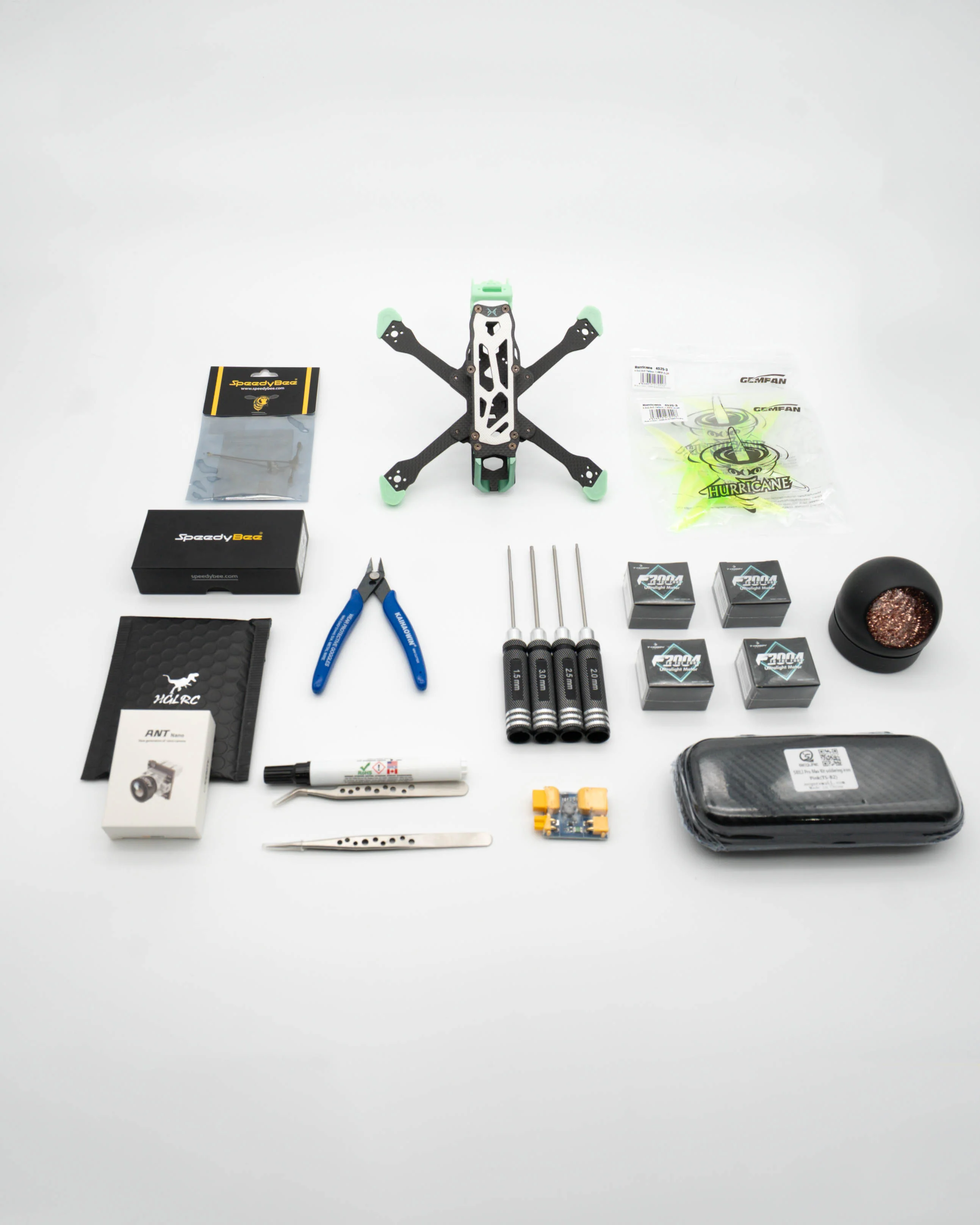

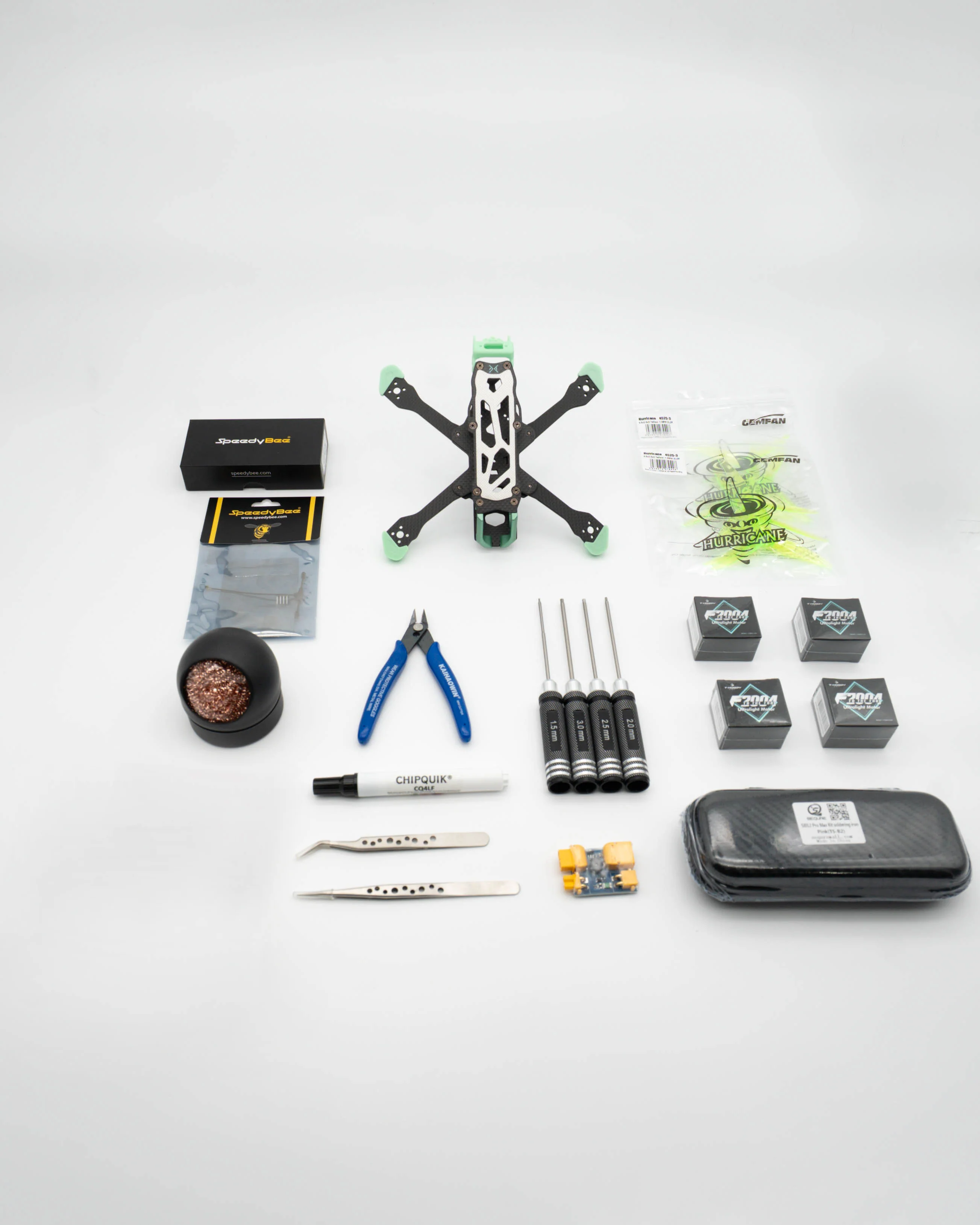

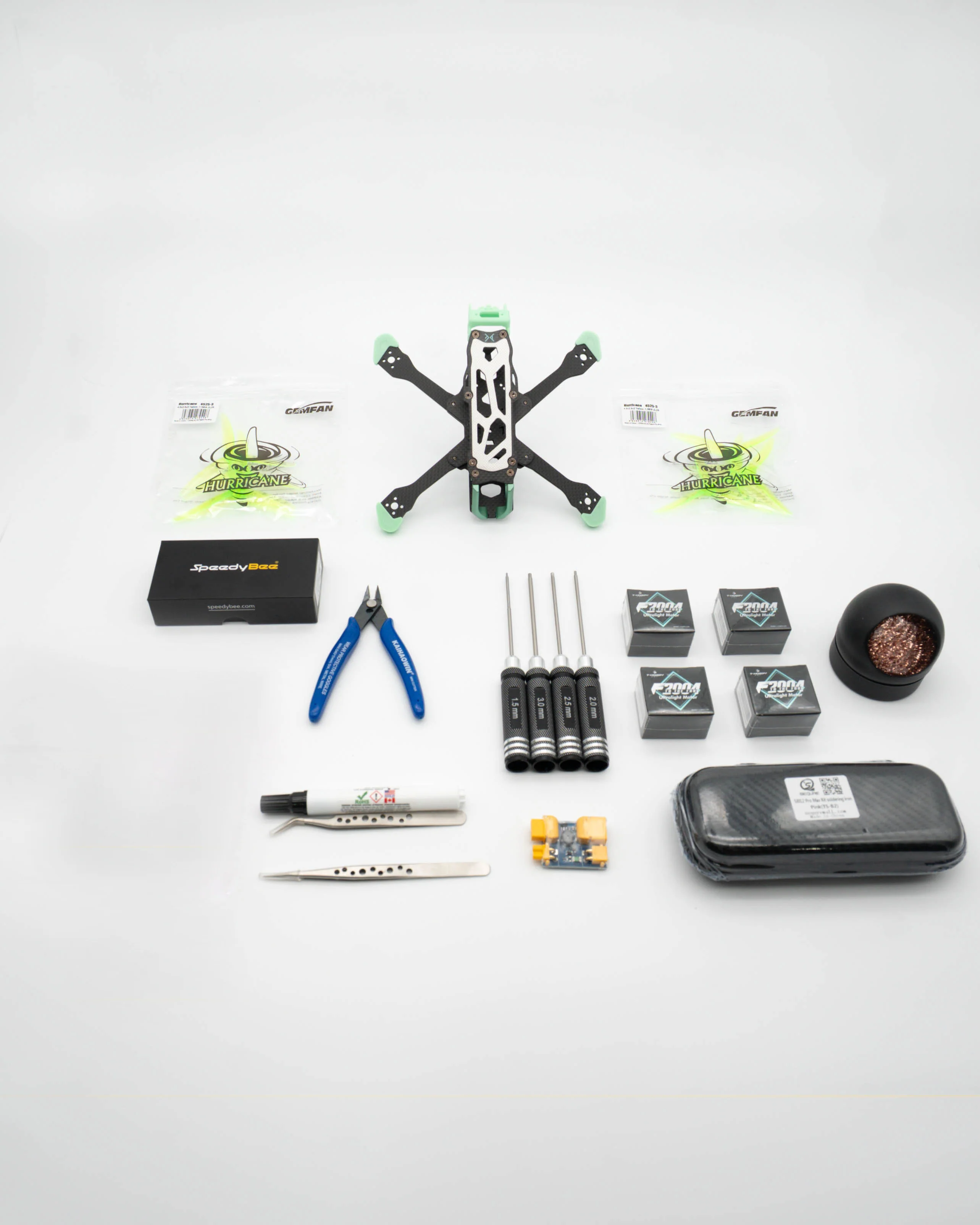

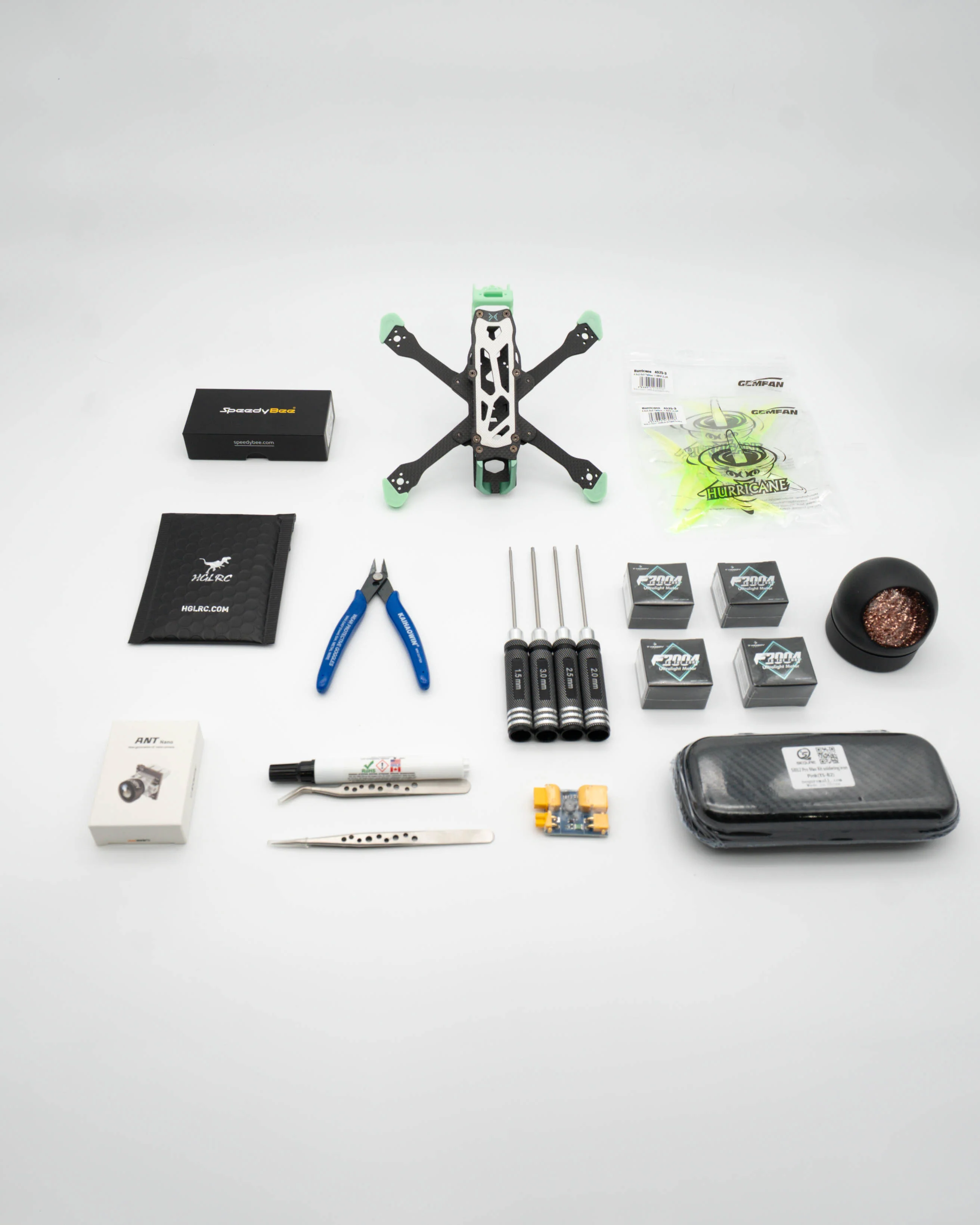

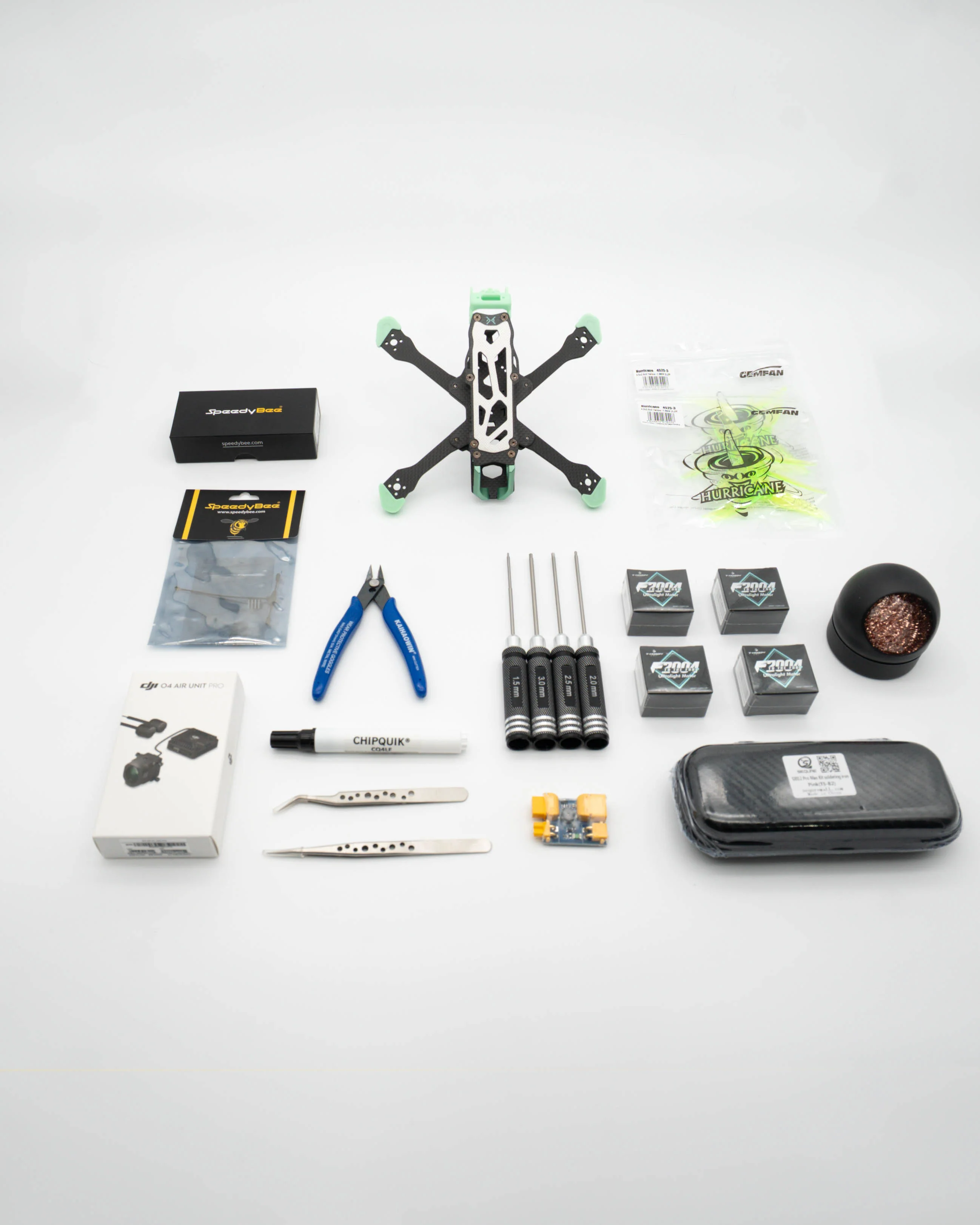

Includes:
• Frame kit
• Full hardware set (all screws, standoffs, etc.)
• 2x sets of props
• Precision screwdriver set
• Wire cutters
• Sequre Soldering Iron
• Flux pen
• Soldering cleaner
• Tweezer set
• Smoke stopper

Please Note the following

• This is all the parts needed to build the drone.
• This DOES NOT include Goggles, remote, or batteries
• Actual product may vary from the photos

---

Specs

• Frame Weight: 150 g (Carbon, Hardware, and TPU)

• Wheelbase: 198 mm (Supports up to 4.5” Props)

• Arms: 5 mm Carbon

• Main Stack: 20 mm & 30 mm compatible

• Rear Stack: 20 mm & 25 mm compatible (VTX)

• Motor Mounts: 12 mm M2

• Top & Bottom Plates: 2.5 mm Carbon

• Camera Mount: Supports 19 mm & 20 mm FPV cameras (with included 3D-printed adapters)

• DJI Air Unit Riser: Included for optimal airflow

• Material: T700 Carbon Fibre

• 3D Printed Parts Kit: Landing gear, antenna mount, soft-mounted camera supports

• Battery Strap: Included

• Geometry: Squashed X

• Motors:
  - 4S Drone selection will use T-Motor 2004 3000kv
  - 6S Drone selection will use T-Motor 2004 1700KV

• Flight controller & ESC:
  F405 Mini Stack 20 x 20

• Receiver:
  Speedybee ELRS Receiver
