If you're looking for a pre-built drone, CLICK HERE

If you're looking for the frame only, CLICK HERE

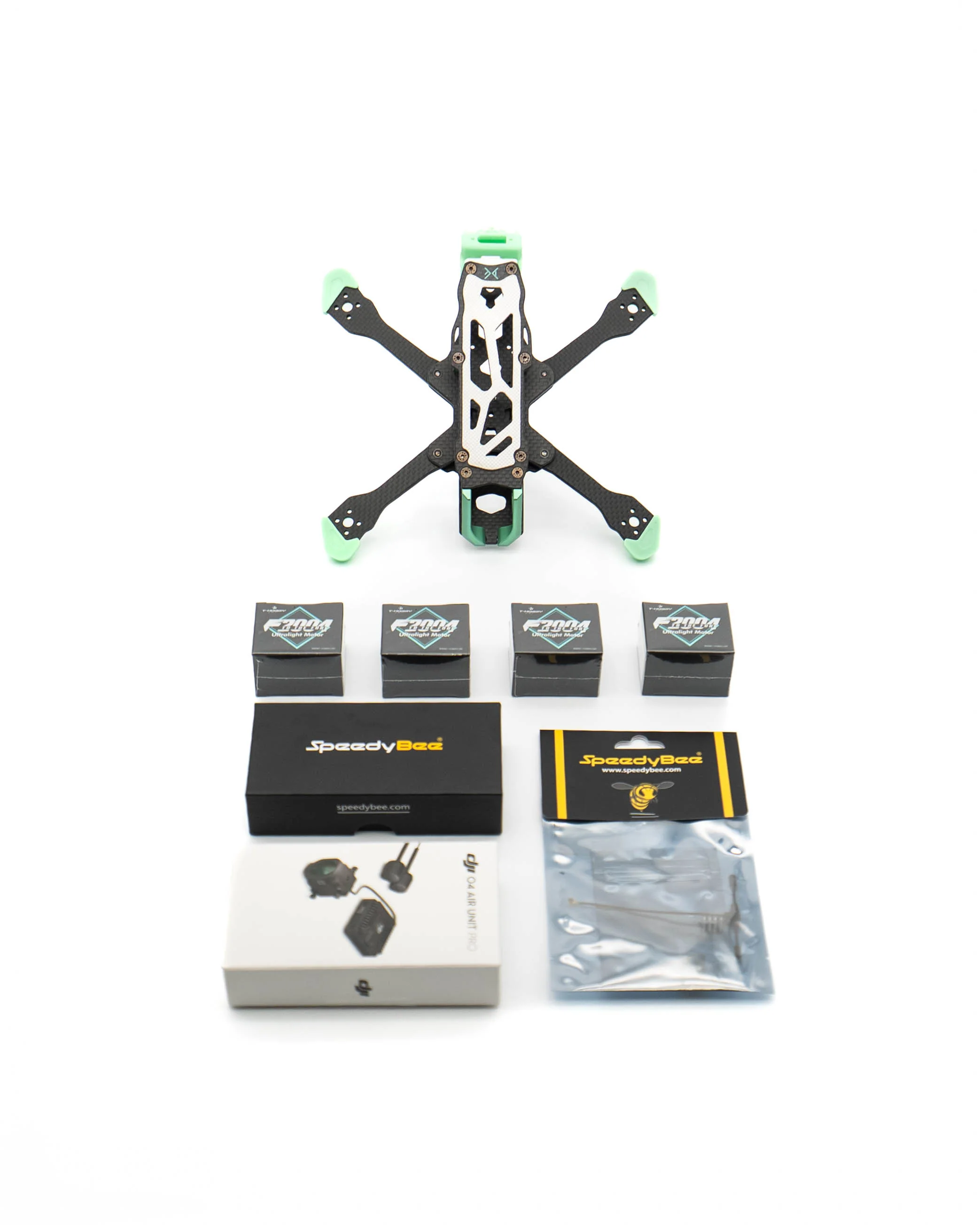

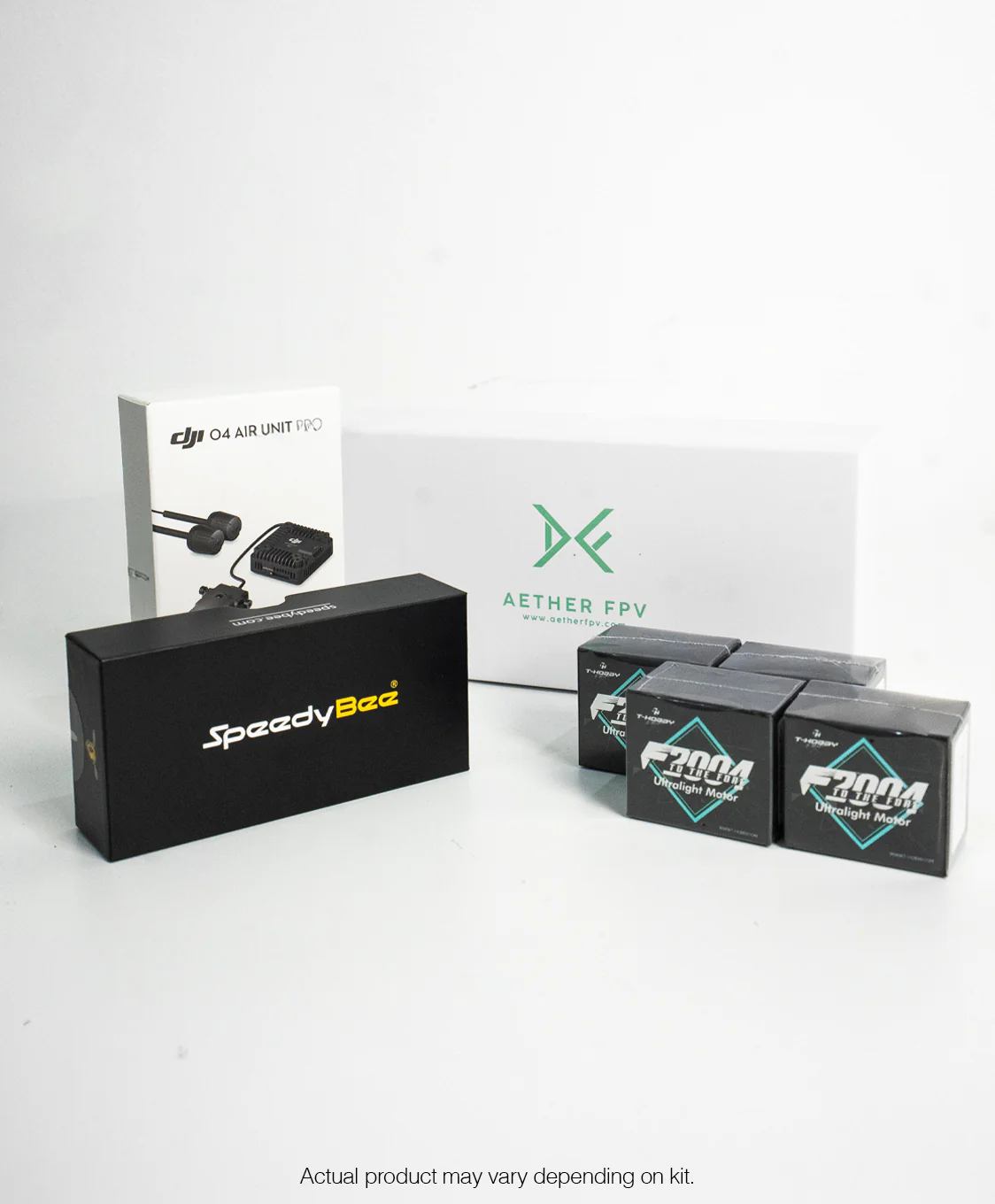

Includes:
• Frame kit
• Full hardware set (all screws, standoffs, etc.)
• 2x sets of props
• Spare Archetype (Frame Only)
• 8 Motors

Please Note the following

This is all the parts needed to build the drone.
This DOES NOT include Goggles, remote, or batteries
Actual product may vary from the photos

When I designed the Archetype, I wanted something that actually made sense to build — open, clean, and tough enough to take real hits. The inside is wide and uncluttered, so building it feels easy instead of like surgery. The 5mm arms give it that solid, planted feel in the air, and yeah… they can take a crash or two.

It’s built around a 4-inch setup because I love how nimble and snappy it feels — but if you want a little more punch, it’ll happily swing 4.5-inch props too. Made from T700 carbon, with airflow risers, flexible stack options, and a bunch of custom 3D prints that make it all fit just right — this is the frame I wanted to fly myself. Simple, strong, and ready to build.

Specs

Frame Weight: 150 g (Carbon, Hardware, and TPU)
Wheelbase: 198 mm (Supports up to 4.5” Props)
Arms: 5 mm Carbon
Main Stack: 20 mm & 30 mm compatible
Rear Stack: 20 mm & 25 mm compatible (VTX)
Motor Mounts: 12 mm M2
Top & Bottom Plates: 2.5 mm Carbon
Camera Mount: Supports 19 mm & 20 mm FPV cameras (with included 3D-printed adapters)
DJI Air Unit Riser: Included for optimal airflow
Material: T700 Carbon Fibre
3D Printed Parts Kit: Landing gear, antenna mount, soft-mounted camera supports
Battery Strap: Included
Geometry: Squashed X
Motors:
- 4S Drone selection will use T-Motor 2004 3000kv
- 6S Drone selection will use T-Motor 2004 1700KV
Flight controller & ESC:
F405 Mini Stack 20 x 20
Receiver:
Speedybee ELRS Receiver
